· Designed for the refrigeration industry
· High waterproof grade, anti-condensation
· High cost performance
Share This Item :

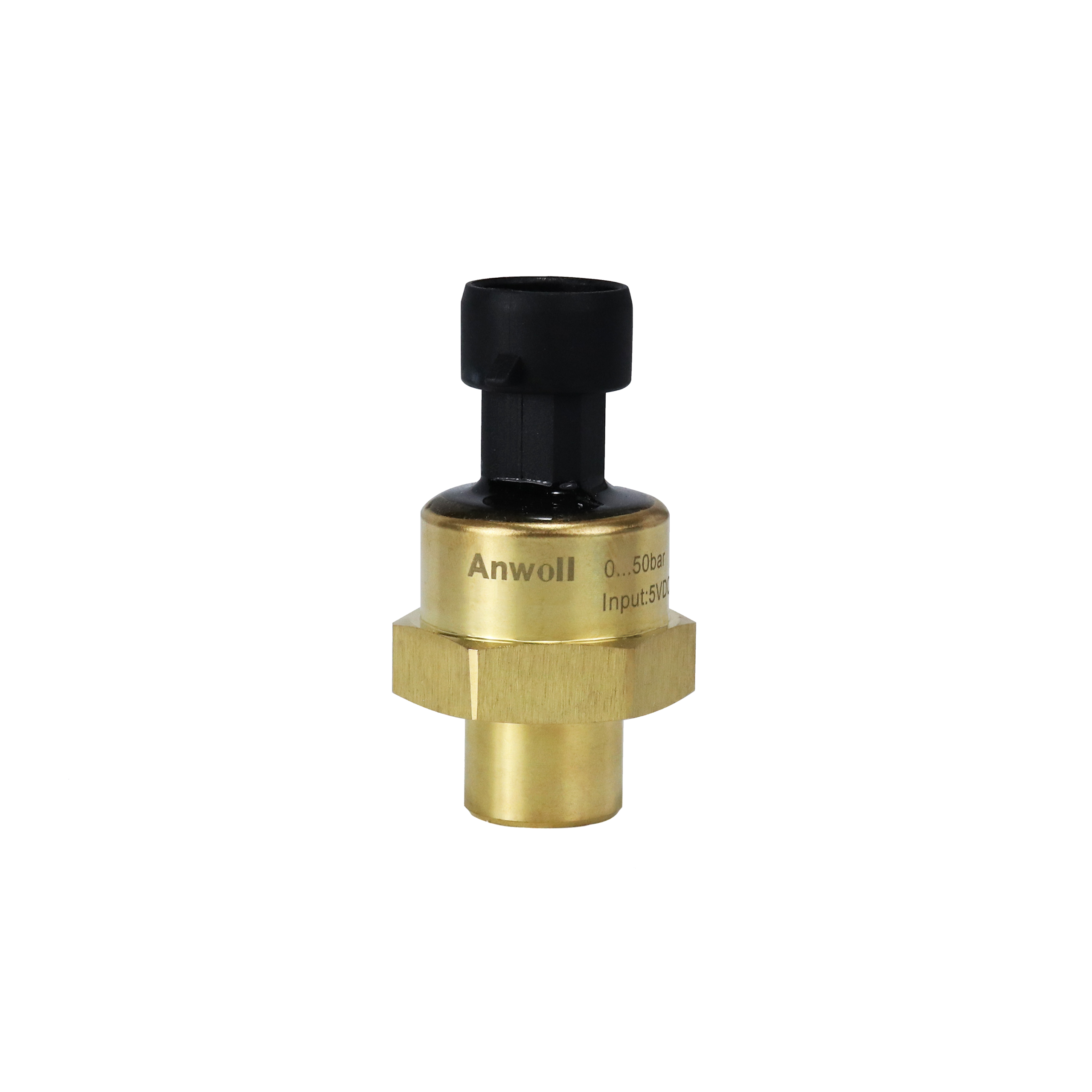

The PT11 pressure transmitter adopts ceramic capacitor core, which is an ideal choice for
refrigerant pressure measurement occaslons. The standard 0.5-4.5V output signal, has the
advantages of wide operating temperature high precision, high waterproof level, and anti-
condensation water. It is suitable for the pressure measurement of most common refrigerants,
and also has a high burst pressure.
| Measurement Range | 0~10…50bar |
|---|---|
| Overload Pressure | 2 times of the rated pressure |
| Burst Pressure | 3 times of the rated pressure |
| Accuracy | ±1.5%F.S(-20…+80℃)[-4…+176℉] |
| Pressure Form | Guage pressure G |
| Measured medium | R12, R22, R32, R134a, R404a, R407c, R410a, R502, R507 |
| Process Connection | 7/16-20UNF Internal thread |
| Temperature | Working: -40…+120°C[-40…+248°F] |
| IP Grade | IP67 |
| Output signal | 0.5…4.5V (Proportional voltage output) |
| Power Supply | 4.75…5.25 VDC |
