· Oil-filled silicon core with high overload capacity
· Excellent resistance to corrosion and wear
· Using ASlC technology, digital compensation
· Can be used in a variety of complex environments
Share This Item :

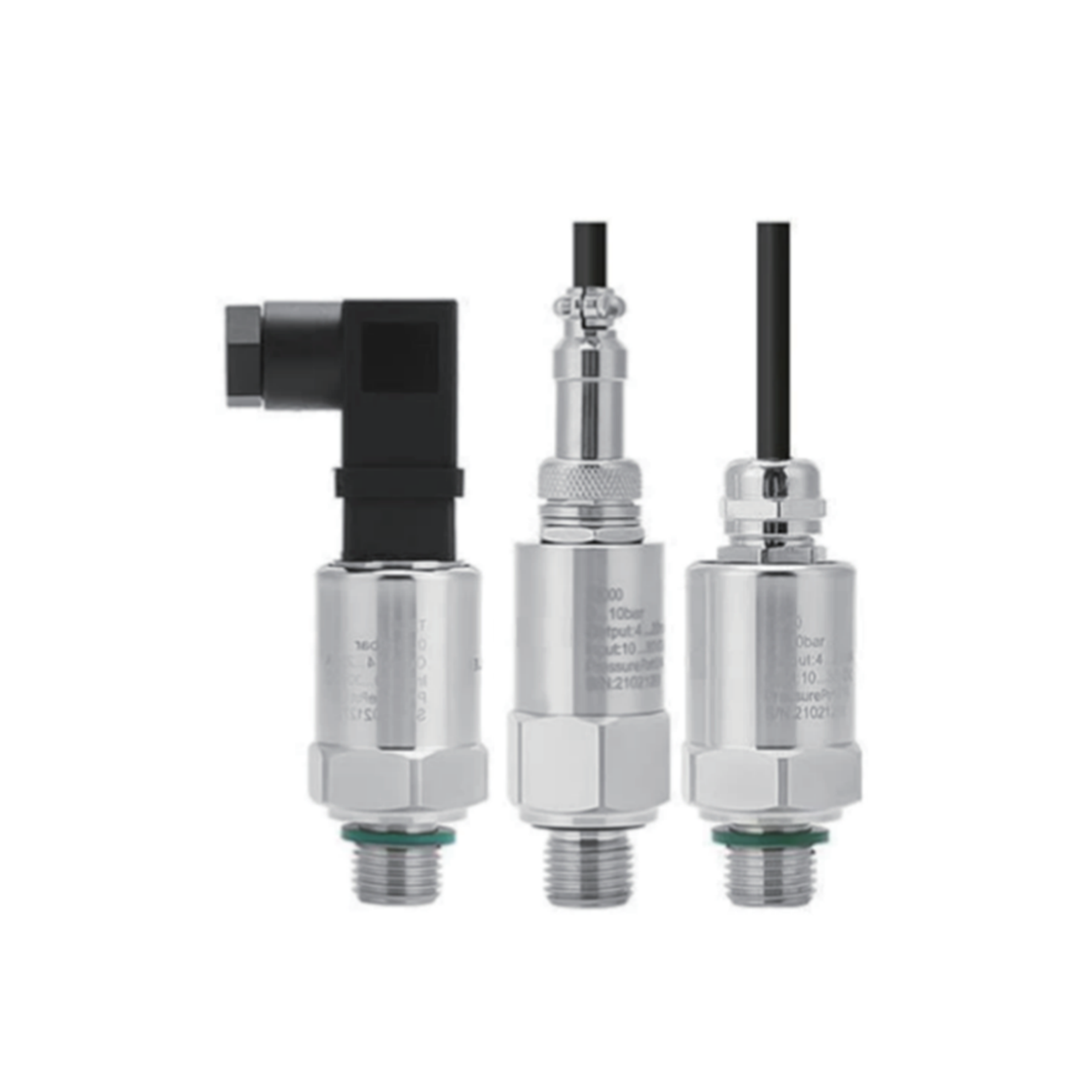

PT12 oil-filled silicon core pressure transmitter is widely used in the measurement of fluid
medium pressure in test systems such as fire protection, water treatment, water supply systems,
air compressors, pneumatic devices, and factory automation. Adopts ceramic sensitive
diaphragm with high overload capacity. It has excellent anticorrosion and anti – wear
performance, adopts ASlC technology, MEMS technology, and digital compensation. And it has
the characteristics of small size and low price. It can be applied in various complex environments.
| Measurement Range | -100kPa~0.3MPa…6MPa,0~0.3MPa…60MPa |
|---|---|
| Overload Pressure | 1.5 times of the rated pressure(up to 80MPa) |
| Burst Pressure | 2 times of the rated pressure(up to 90MPa) |
| Accuracy | ±0.5%F.S, ±1.0%F.S |
| Stability | ＜0.5%F.S/year |
| Pressure Form | Guage pressure G |
| Measured Medium | Gas or liquid compatible with 1Cr18Ni9Ti,304 stainless steel, Fluorine rubber or Nitrile rubber |
| Process Connection | G1/4, NPT1/4, R1/4, G1/2,7/16-20UNF, M20*1.5, M10*1, M14*1.5 etc |
| Temperature | Working: -20…+85°C[-4…185°F] |
| IP Grade | IP54 (GX12 aviation), IP65 (DIN43650A,M12 waterproof outlet, M12 four-core aviation connenctor) |
