· Motion of the pointer without inertia or drift
· Nohysteresis
· Positive, negative or differential pressure can be measured

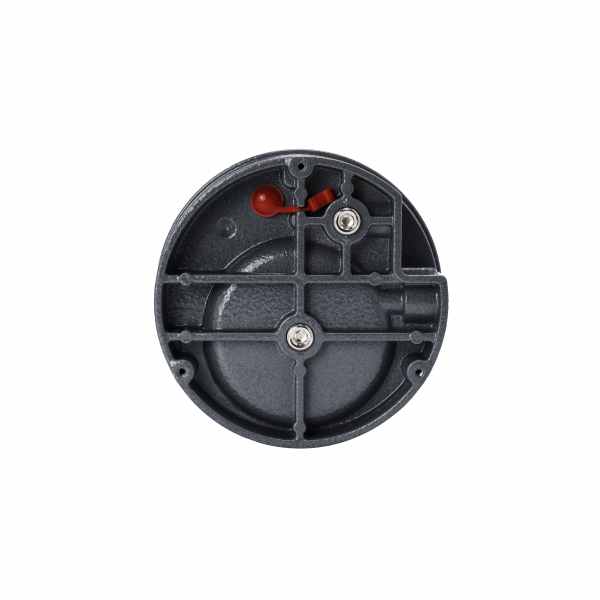

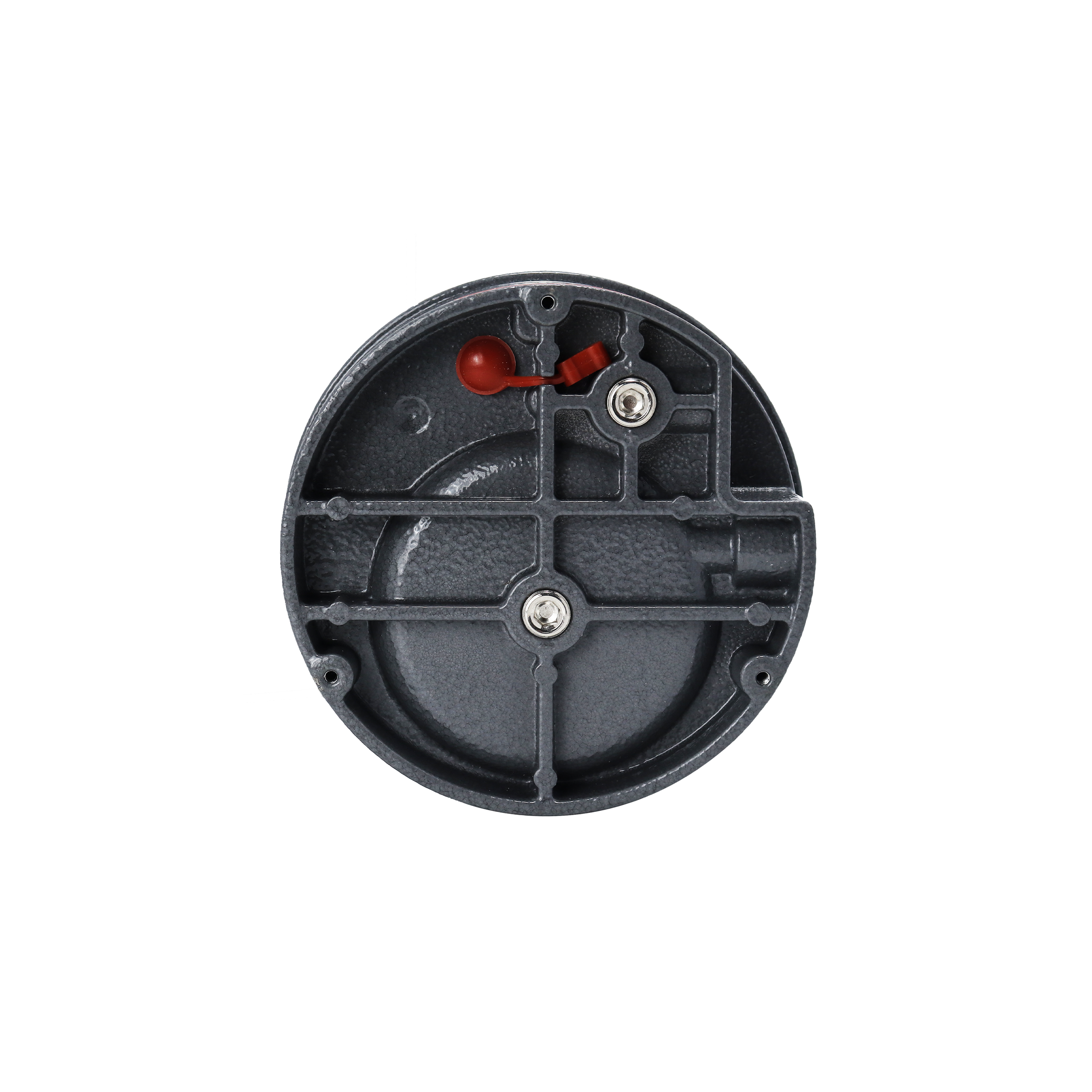

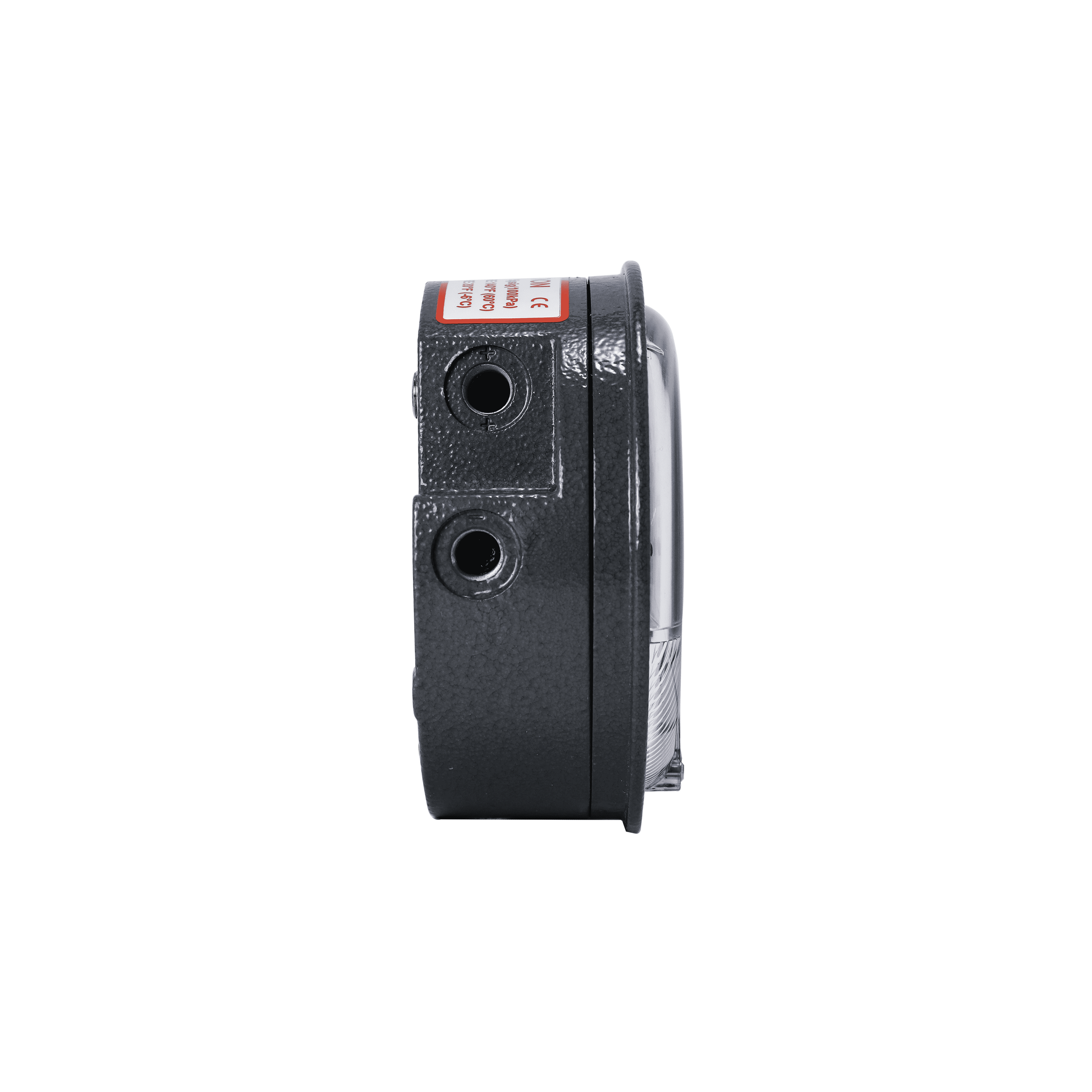

· Two pressure ports on the side and back, with three installation options for flexible and versatile applications
Share This Item :
The DPG51 differential pressure gauge is widely used for measuring the fans or blowers pressure, filter
resistant, wind speed, furnace gas pressure, Orifice pressure difference, bubble level and hydraulic
system pressure. It is also applied to regulate the air-gas combustion ratio and automatic valve or
detecting the breathing, and blood pressure in medical equipment. There are some more applications
like micro-electronics, aviation and space, environmental protection project, biological engineering,
intelligent building, HvAC, food and beverage and precision electronic processing.
Pressure Range | 0…10kPa |
---|---|
Over-pressure Protection | 110kPa…150kPa,the rubber plug pops out automatically |
Process Connection | 1/8*NPT female thread high |
IP Grade | IP66 |
Accuracy | ±2% FS under 21.1℃[70℉] |
Medium | Air and non-flammable gases |
