· Sense the slight change of pressure, suitable for HVAC systems
· Automaticreset function
. Widely used in wards, laboratories, clean workshops and so on
Share This Item :

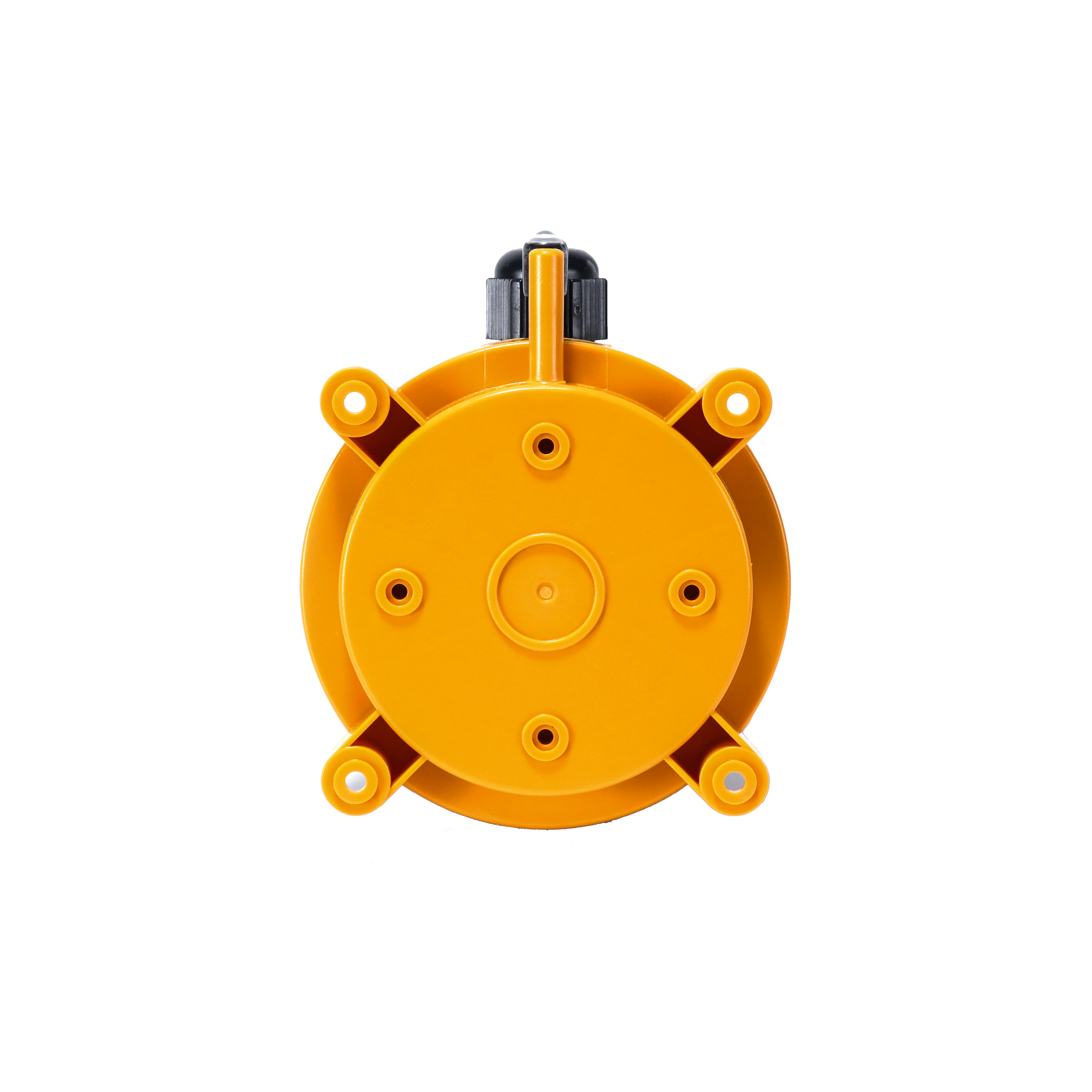

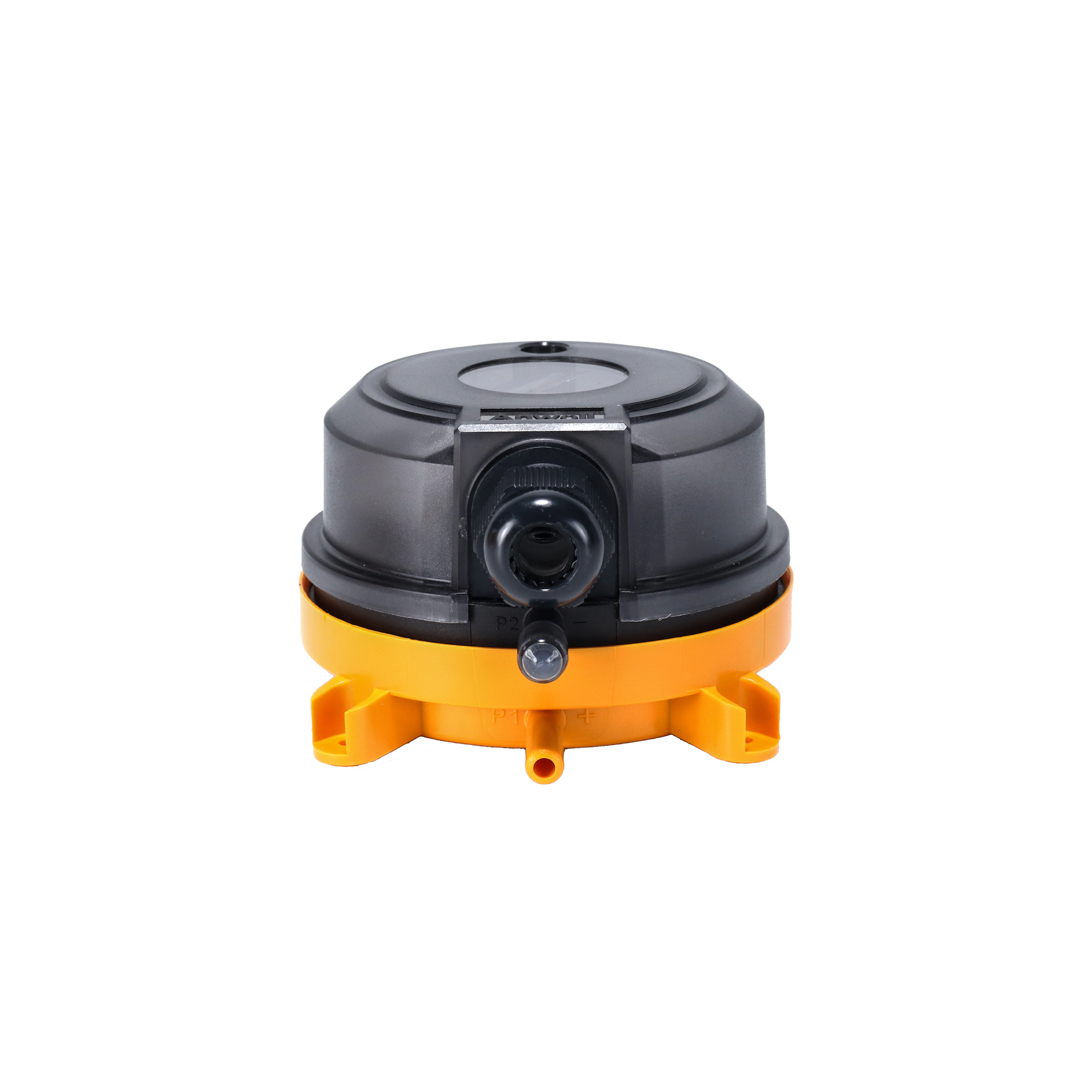

The DPS52 is an adjustable differential pressure switch capable of detecting miniscule changes in

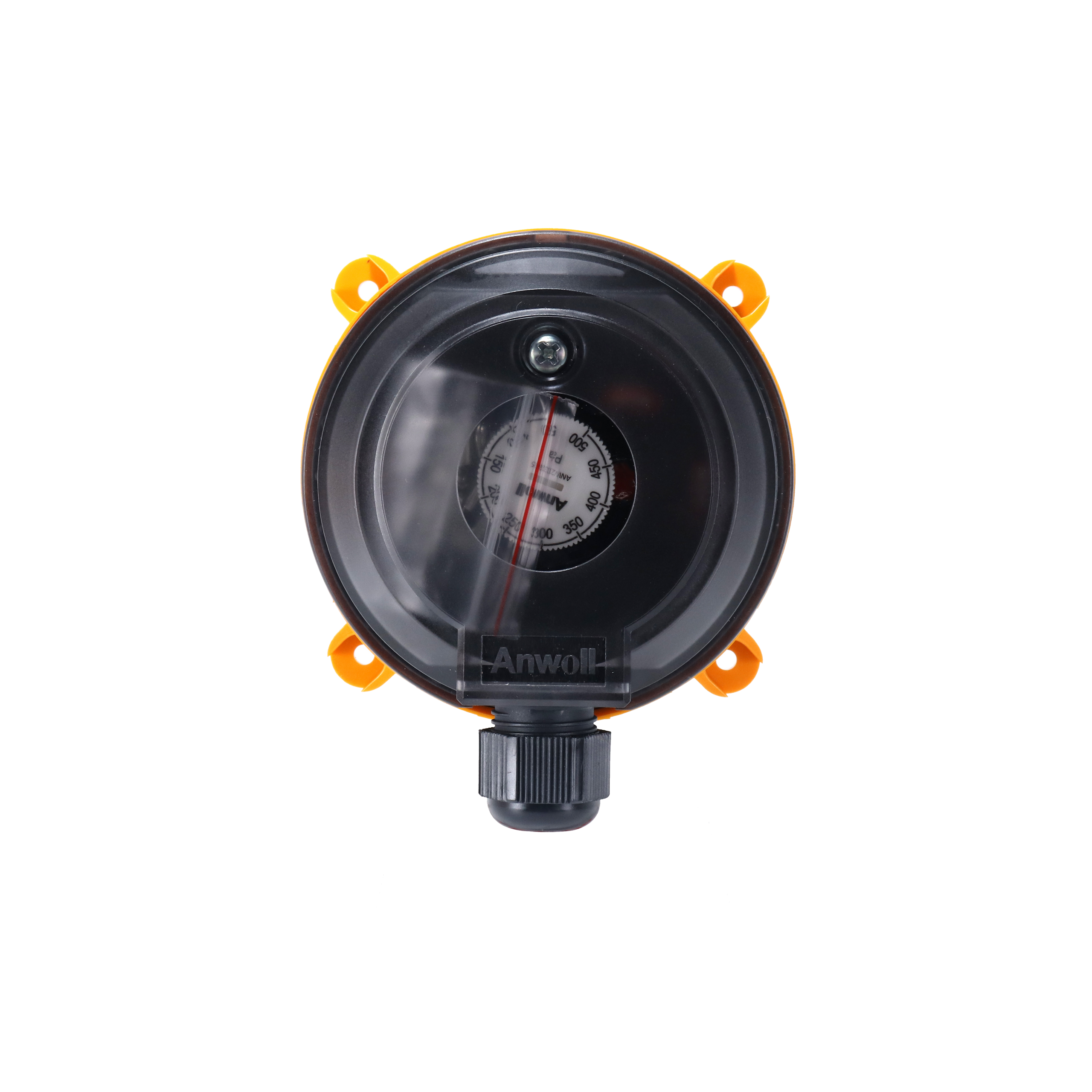

pressure due to the size and proven design. The switch set point or switching point can be field
adjustable without the need of a manometer by simply using the adjustment knob and the built in
calibrated visual scale. This switch is equipped a clear cover that not only protects the adjustment knob
to be move involuntary but also provides class IP54 protection.
| Pressure Difference Range | 20…200-5000Pa |
|---|---|
| Process Connection | φ6.4mm |
| Terminal Block | 6.35*0.8 AMP standard flat insert |
| Tests / Admissions | UL60730 |
| Switching Load | 1.5A (0.4A) at 250 VAC |
| Resistive(Inductive) | 0.1A at 24 VDC |
| Medium | Air, non flammable or non hazardous gases |
| Temperature | Medium: -20…+85℃[-4…+185℉] |
| IP Grade | IP54 (with cover) |
