· Detect the temperature change of the medium and perform the switching action
· Automaticresetfunction
· The action temperature and differential is adjustable
Share This Item :

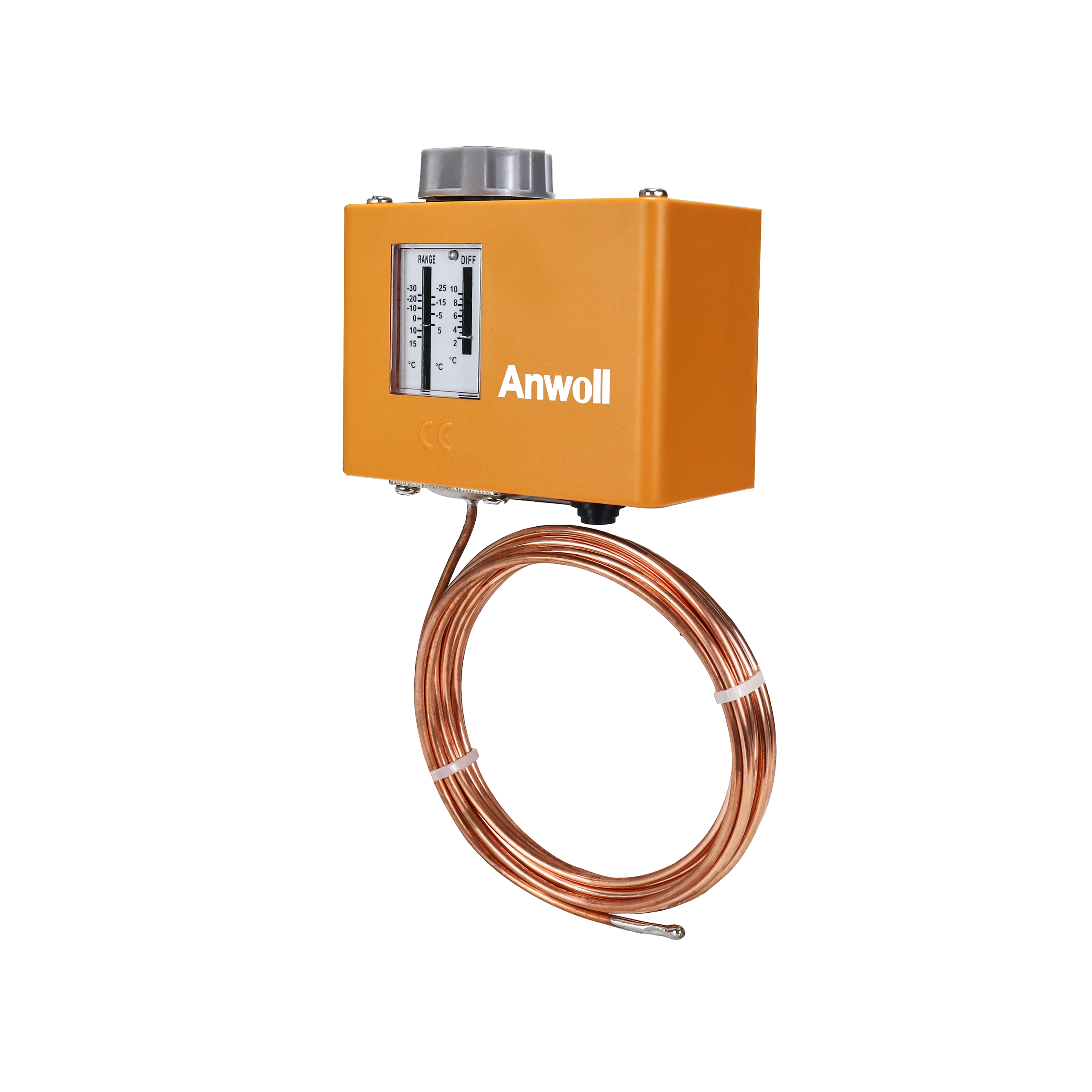

TS34 are used for regulation, but can also be seen in safety monitoring systems. They are available with
vapor charge or with adsorption charge. With vapor charge the differential is very small. The TS34
Thermostats with adsorption charge are widely used to give frost protection.
| Temperature Bulb | Φ2.5 Capillary, the minimum length of capillary and controlled environment is 0.25m (customizable) |
|---|---|
| Tests / Admissions | UL508 |
| Switching Load | FL8A / LR48A at 240 VAC |
| Dielectric Strength | 2000V / one minute without breakdown |
| Medium | Mainly the greenhouse air |
| Temperature | Medium: -40…+120℃[-40…+248℉] |
| IP Grade | IP30 |
