· Adopts MEMS monocrystalline silicon high-precision pressure sensor
· Fast response, high stability, measuring accuracy 0.075%FS
· Range ratio up to 100:1
· Reversible in-place display screen with backlit high brightness LCD display
· Local zero clearing function, local zero, full point setting adjustment

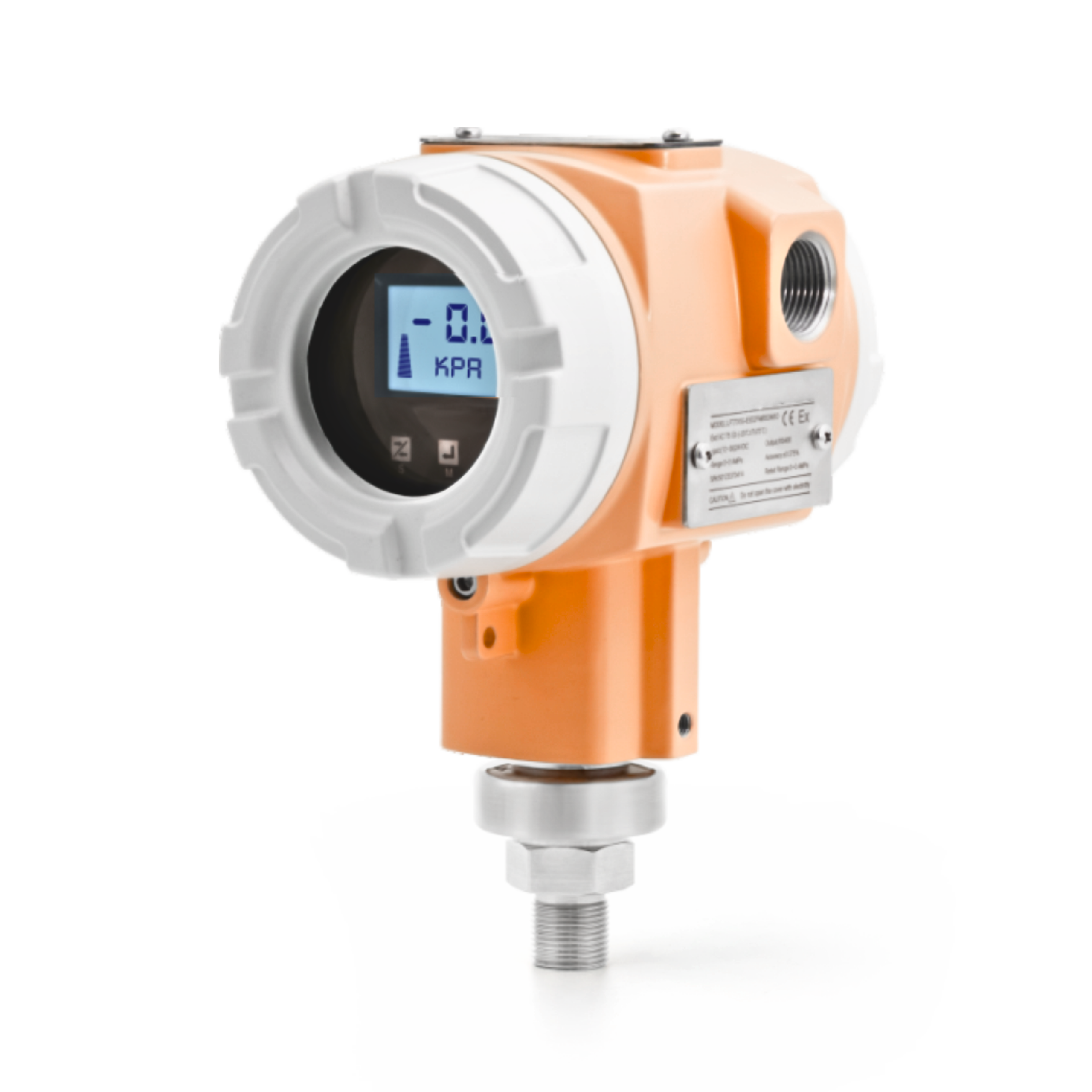

The MST21 monocrystalline silicon pressure transmitter is used to measure the liquid leve
density and pressure of liquid, gas or steam,then convert it to 4…20mA DC output signal.
The transmitter can be operated locally with three buttons, or remotely operated by a
universal hand operator, configuration software, and mobile phone APP. It can
perform display and configuration adjustments without affecting the output
signal of 4~20mA DC.
| Diaphragm | Stainless steel 316L,Hastelloy, Tantalum |
|---|---|
| Process connection | Stainless steel 304,stainless steel 316L |
| Thread specification | M20*1.5,G1/2, NPTF1/2, others |
| Transmitter shell | Aluminum alloy materia |
| Shell seal | NBR |
| Name plate | Stainless steel 304 |
| Standard/flameproof | 14.5…36VDC.The load resistance during communication is 250…600Ω |
| Electrical connection | luminum alloy junction box, two outlets with internal thread M20*1.5, the main body is blue, and the cover is white |
| Working temperature | -20…+70℃[-4…+158℉] with display |
| Production grade | IP65 |
| Working humidity | 5…100%RH@40℃ |
