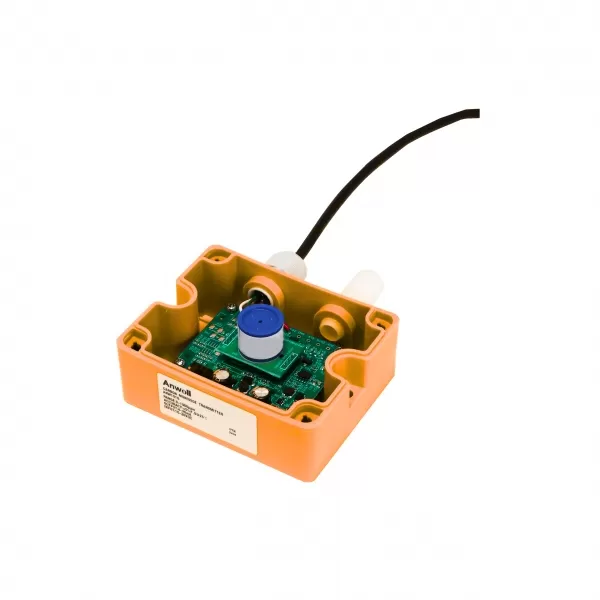

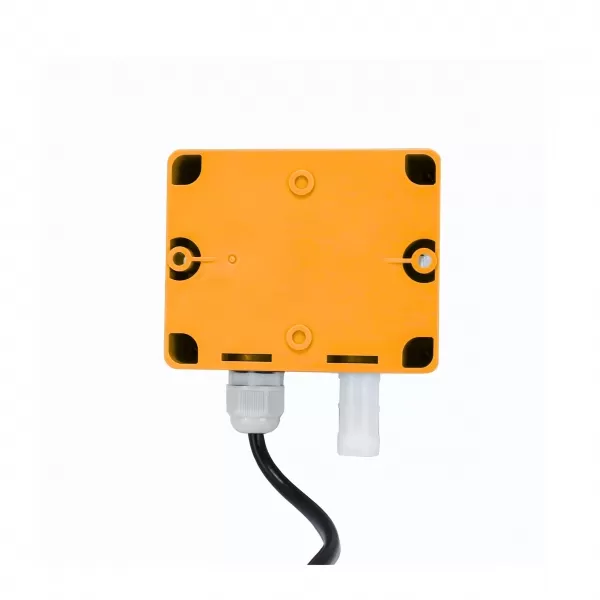

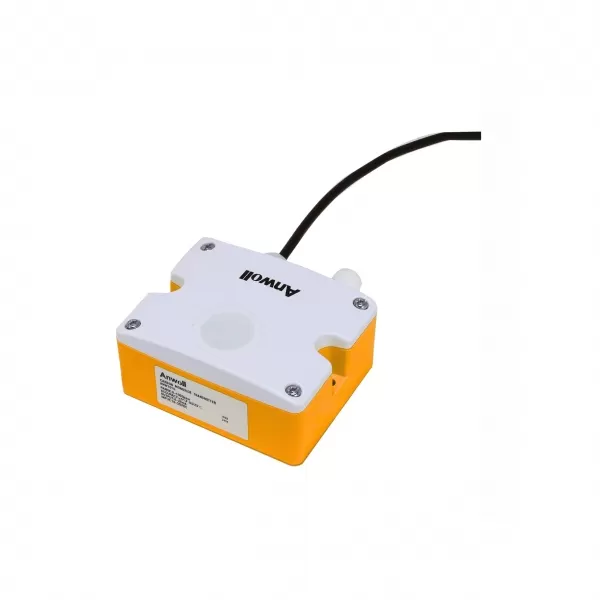

CMT76 wall-mounted carbon monoxide transmitter uses electrochemical principle to detect carbon monoxide in the air, with good selectivity and stability. Three output modes of current, voltage and RS485 are optional, wide voltage power supply and power supply ant-reverse connection protection. It is suitable for carbon monoxide gas monitoring in indoor air quality detection, air conditioners, air purifiers, underground parking lots and other occasions.
Multiple signal output types, suitable for various processing equipment
Up to 5 years of service life
The protection level is IP6X
| Measured concentration | 0-500ppm/0-1000ppm | |||
| Response time(T90) | ≤15s | |||
| Accuracy | ±5%F.S@25℃ | |||
| Service life | >5 years | |||
| Operating conditions | ||||
| Temperature | Working: -10...+50℃[+14.-122°F] | |||
| Working humidity | 15%...90%RH | |||
| Work pressure | 1atm(Standard Atmospheric Pressure)±10% | |||
| IP grade | IP6x | |||
| Electrical overview | ||||
| Electrical properties | 3-wired | 4-wired | ||
| Output signal | 4..20mA | 0..5V | 0...10V | RS485 |
| Working voltage | 10...30VDC | 10..30VDC | 16...30VDC | 10..30VDC |
| Wiring instructions | ||||
| RS485 digital output type wiring | ||||
| Power supply | Red | Positive power | ||
| Black | Negative power | |||
| Communication | Green | 485-A | ||
| White | 485-B | |||
| Voltage/Current analog output type wiring | ||||
| Power supply | Red | Positive power | ||
| Black | Negative power | |||
| Communication | Green | Voltage/Current output Positive | ||
| White | Voltage/Current output negative | |||
