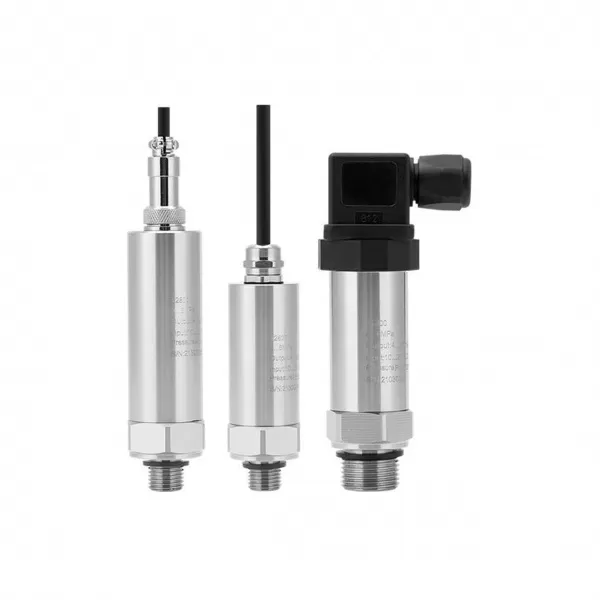

PT13 oil-filled silicon core pressure transmitter is widely used in the measurement of fluid medium pressure in test systems such as fire protection, water treatment, water supply systems, air compressors, and pneumatic device and factory automation. It has excellent anti-corrosion and anti-wear performance, adopts ASlC technology, MEMS technology, digital compensation, and can be applied in various complex environments.
Oil-filled silicon core with high overload capacity
Excellent resistance to corrosion and wear
Using ASlC technology, digital compensation
Can be used in a variety of complex environments
| Measurement range | -100kPa...0~5kPa.60MPa | ||||
| Overload pressure | 1.5 times the rated pressure | ||||
| Accuracy | ±0.5%F.S(-100KPa...0~5KPa...60MPa) ±0.25%F.S(-100KPa...0~10KPa...60MPa) | ||||
| Stability | <0.5%F.S/year | ||||
| Pressure form | Gauge pressure G/Absolute pressure A | ||||
| Measured medium | Gas or liquid compatible with 304 and 316L stainless steel, Fluorine rubber, or Nitrile rubber | ||||
| Operating conditions | |||||
| Process connection | G1/4,NPT1/4,R1/4,G1/2, 7/16-20UNF,M20*1.5,M10*1,M14*1.5 etc | ||||
| Temperature | Working: -20...+85°℃[-4...185°F] Storage: -40...-100°℃[-40...212°F] | ||||
| IP grade | IP54(GX12 aviation), IP65(DIN43650A, M12 waterproof outlet, M12 four-core aviation connenctor) | ||||
| Electrical connection | DIN43650A(Big Hirschmann), M12 waterproof outlet, GX12 aviation(three-core/four-core), M12 four-core aviation connector | ||||
| Electrical properties | 2-wired(current) | 3-wired(voltage) | 4-wired | ||
| Output signal | 4...20mA | 0.5...4.5V | 0...5V | 0...10V | RS485 |
| Power supply | 8...36VDC | 4.75...5.25VDC | 8...36VDC | 12...36VDC | 10...30VDC |
