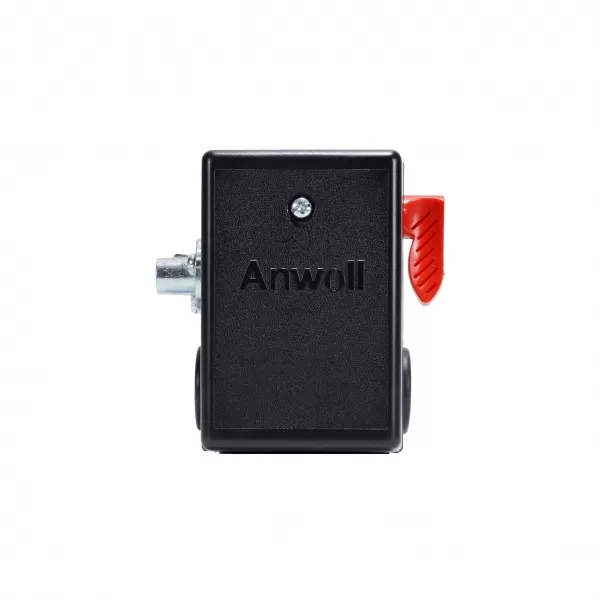

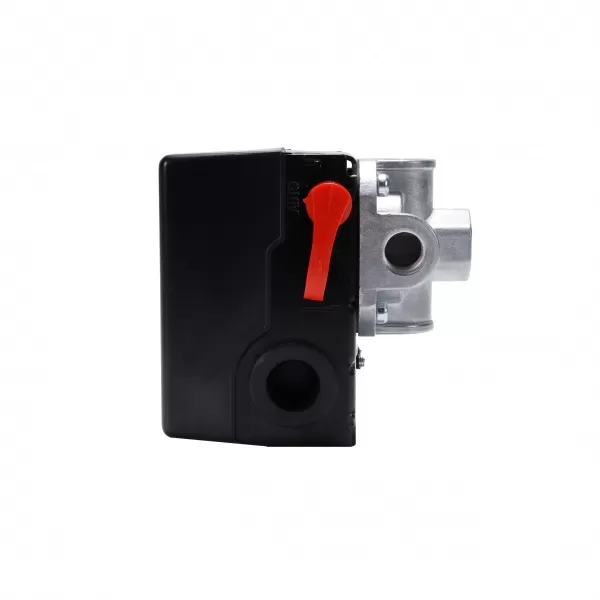

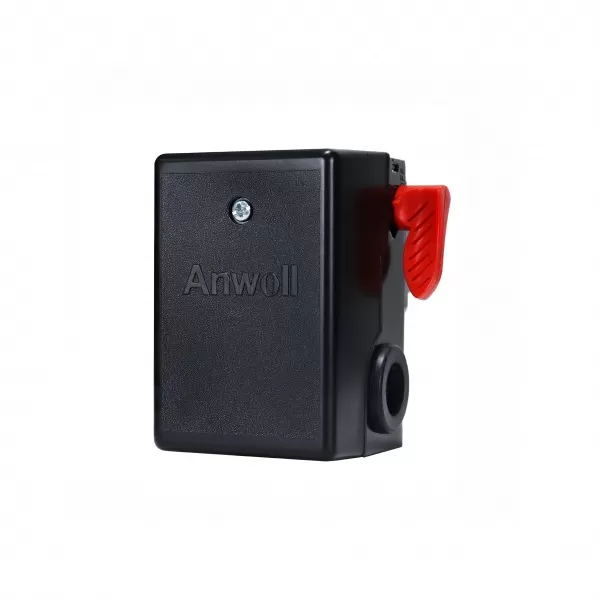

CPS23 air compressor pressure switch, this product is used for adjusting the pressure which in the compressor tank to operate between two preset pressure values. The pressure switch with an unloading valve prevents the air compressor fromoverloading and the handle is supposed to manually power off the compressor. The four-way base connection makes the installation of additional parts more convenient.
Adjust pressure in the air compressor tank.
Choose to have a relief valve function to avoid compressor overload starting.

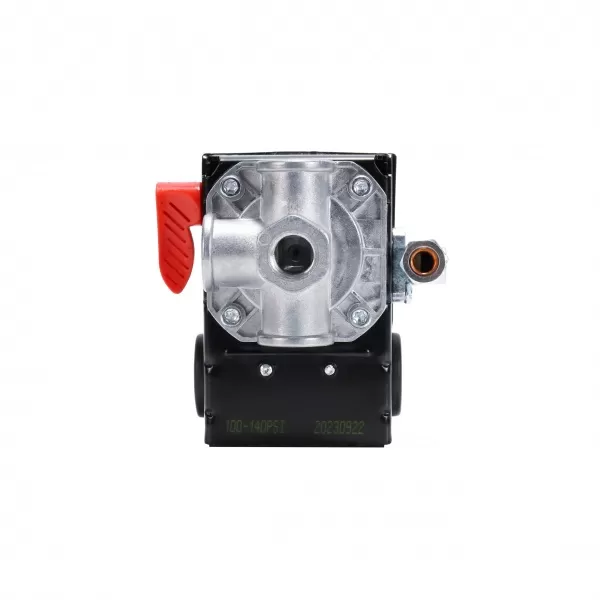

The four ports connector facilitates the installation of components such as safety valves.
The attached handle can cut off the compressor power manually.
| Pressure Range | 95...125-200psi |
| Process Connection | Single port / Female thread, Fourports /Femalethread, Single port / male thread, Double female and male thread NPT1/4, R1/4, G1/4 (can be customized) |
| Tests / Admissions | CSA |
| Electrical Overview | |
| Switching Load | 26 A at 120 VAC,50 HZ 20 A at 240 VAC,60 HZ |
| Operating Conditions | |
| Medium | Air, non-flammable, non-hazardous and a non-corrosive gas |
| Temperature | Ambient:-20...+80C[-4...+176°F] |

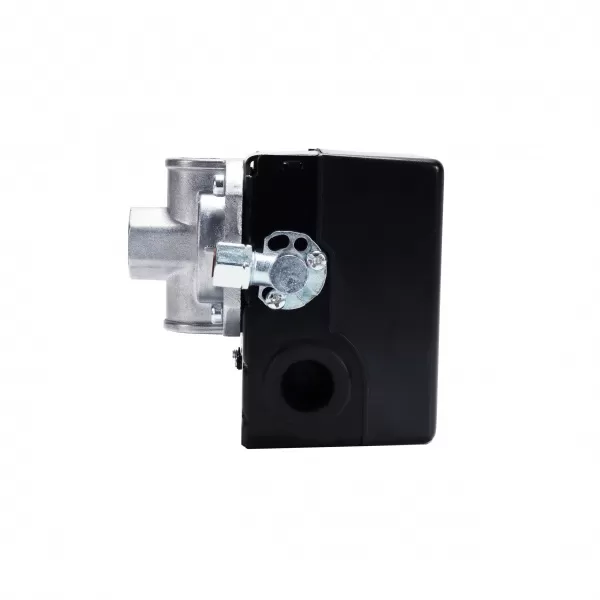

| Unloading Valve Connection | Ф6.0 mm, Ф6.4 mm, Ф6.5 mm, can be customized |
| IP Grade | IP20 |
