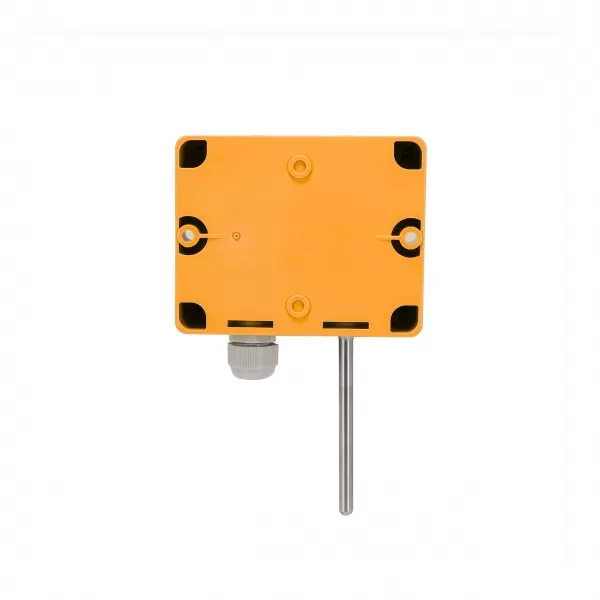

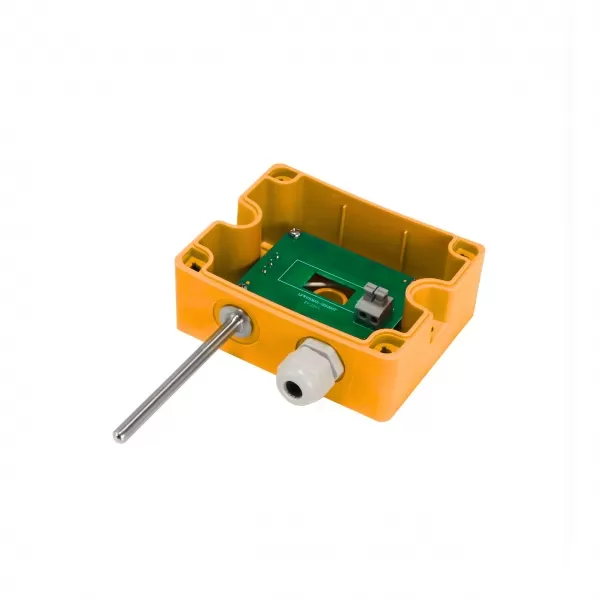

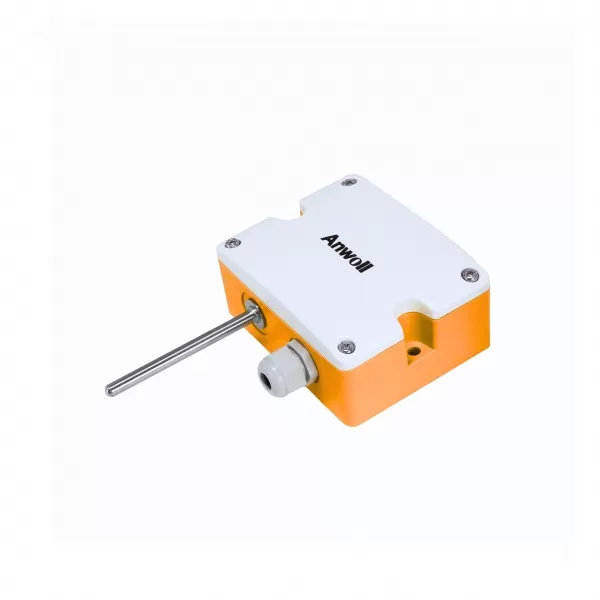

The TT61 series temperature transmitter is a sensor specially designed for industrial applications. It is specially designed for lightning surge, electrostatic discharge, group pulse, pressure resistance, etc., and has strong anti-interference ability. There are five installation methods: wall mounted, air pipe/water pipe, split, and clamp. Three output modes of current, voltage, and thermal resistance are optional. Strong onsite trial installation capability. Spring screws and terminal posts are designed for quick installation. It can be widely used in computer rooms, HVAC, buildings, storage and other places where temperature measurement and control are required.and control are required.
Multiple signal output types, suitable for various processing equipment.
Five installation structures, suitable for various installation environments.
The protection level is IP65.
| Sensor | High-precision thermal resistance, see selection table (resistance output type)/PT1000, Class A(analog output type) |
| Accuracy | Typical 0.2...0.5℃@0/25℃,see order reference No.±0.3℃@25℃,see temperature accuracy curve for details |
| Operating conditions | |
| Housing material | PC housing, stainless steel probe (6mm), and casing |
| Temperature | -40...70 ℃,0...95%RH(Non-condensing) |
| IP grade | IP65 |
| Electrical overview | |
| Output | Resistance value, please refer to the selection table and thermal resistance indexing table 4...20mA or 0...10VDC,0...5VDC |
| Thermal resistance | Please check the selection table and thermal resistance indexing table |
| Power supply | Voltage type 15...35VDC/24VAC±20% Current type 18.5...35VDC(RL=500Ω2)8.5...35VDC(RL=0Ω2) |
| Output load | (Analog output type)≤500Ω(Current type),≥2KΩ(0...5V),≥3KΩ(0...10V) |
