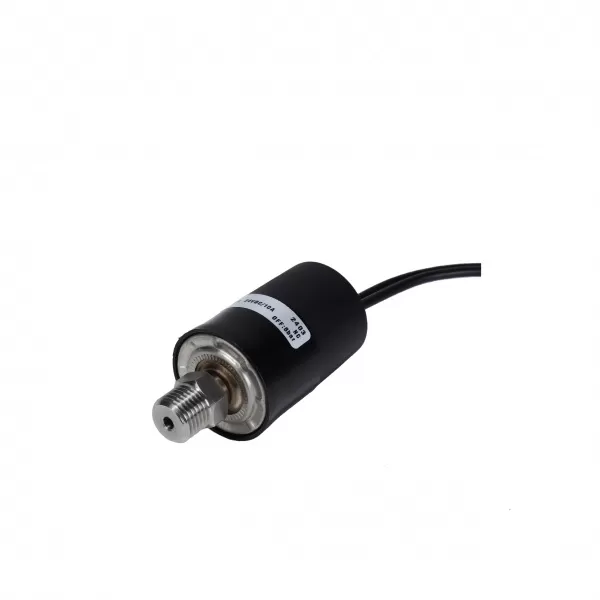

The SPS13 switches are fixed set point, factory calibrated pressure switches. It is automatic reset, and is available in normally open or normally close contacts. All metallic wetted components make the SPS13 switch compatible with a multitude of chemicals in liquid or gas form. It is offered numerous types of electrical terminations from different size and style push on terminals to wire leads with an array of standard industry connectors.
Switch with automatic reset design.
The maximum pressure set point can reach 942psi, and the maximum rated current is 25A.
Typical application safety devices/air conditioning/refrigeration equipment.
| Pressure Set Range (Gauge Pressure) | Pressure set range: From 0.1 MPa to 6.5 MPa; below 1.0 MPa (gauge pressure)is considered low pressure, while 1.0 MPa And above is regarded as high pressure |
| Process Connection | M threads, NPT threads, R threads, G threads, UNF threads and copper pipes (Other sizes can be customized) |
| Burst Pressure | 34.5MPa x 1min, no damage orleakage |
| Mechanical Lifespan (Switching Cycles) | 100,000 |
| Mechanical Lifespan (Switching Cycles) | 30,000 |
| Electrical Overview | |
| Switching Load | 120 VAC/20 A,250 VAC/ 10 A; 36VDC/15A |
| Operating Conditions | |
| Medium | Air, water, motor oils, transmission oils, jetfuels, and other similar Hydrocarbon media |
| Temperature | Ambient: -40...+65°C[-40...+149°F](Low pressure), -40...+120°C[-40...+248°F](High pressure) Medium:-40...+80'C[-40...+176°F](Low pressure); -40...+135°C[-40...+275°](High pressure) |
| IP Grade | IP67 |
