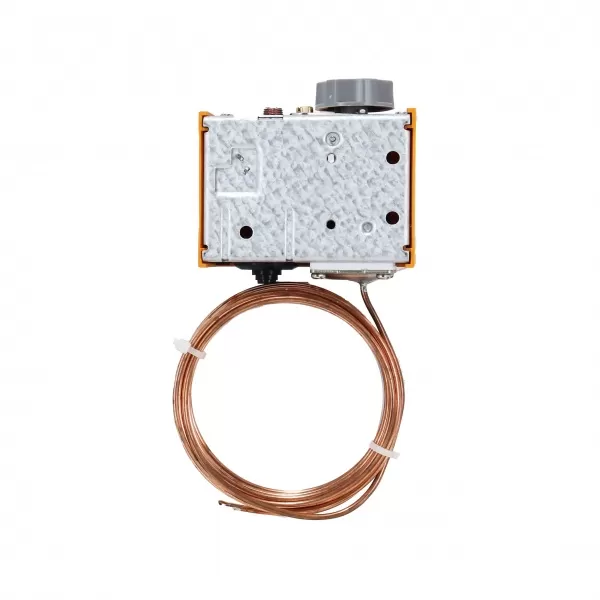

TS34 are used for regulation, but can also be seen in safety monitoring systems. They are available with vapor charge or with adsorption charge. With vapor charge the differential is very small. The TS34 Thermostats with adsorption charge are widely used to give frost protection.
Detect the temperature change of the medium and perform the switching action.
Automatic reset function.
The action temperature and differential is adjustable.
| Temperature bulb | Ф2.5 Capillary, the minimum length of capillary and controlled environment is 0.25m(customizable) |
| Tests/Admissions | UL508 |
| Electrical Overview | |
| Switch Load | FL8A/ LR48A at 240 VAC FL16A/LR96A at 120 VAC |
| Dielectric Strength | 2000V/one minute without breakdown |
| Installation Arrangement | |
| Installation Torque | 2N*M |
| Factory Set | Vertical |
| Operating Conditions | |
| Medium | Mainly, the greenhouse air |
| Temperature | Medium:-40...+120°C[-40...+248°F] Ambient:-20...+65°C[-4...+149°F] |
| IP Grade | IP30 |
